SysDeck

A standalone Linux operations console — Unix-account login, real host state, no fabricated data. Cockpit is optional: the same module catalog loads there too.

Author: Jeremy Anderson · info@dcos.net · https://dcos.net · github.com/dcosnet/SysDeck Version: 0.4.5 · License: MIT

What this is
One catalog, two front ends
Architecture
Module catalog
The auth model
Real host state — the zero-demo contract
Quick start
Configuration
Security model
Development
Coding standards
Documentation map
License

What this is

SysDeck is a browser-native operations console for Linux servers. One process serves thirty-one panels — containers, firewall, integrity auditing, network security, encryption vaults, fleet compute, Kata sandboxes, firmware, image building, mining, sensors, benchmarking, package management across ten package managers, policy and permissions, database control, media servers, photo libraries, remote filesystems, DAG build orchestration, and the AI gateway — and every panel reads the host as it actually is: /proc and /sys collectors, systemctl, lsblk, nft, the real package manager, live service APIs. Nothing in the codebase is demo, mock, or seeded; when a backend is absent the panel says so and shows install guidance.

You sign in with your Unix account — the username and password are verified by the host's own PAM stack, exactly the mechanism Cockpit uses at its own login screen. The host decides; the console keeps no password data of its own. Sessions are user-bound HMAC cookies, login failures are rate-limited per-IP and per-username, and mutating commands require an admin session by default.

The console is a complete standalone application: one Next.js process, a bundled SQLite store, the vendored Fester build orchestrator as a sidecar service. No Cockpit, no Python bridge, no systemd, no root — it runs as an unprivileged user on any Linux host. If Cockpit is on the box, the console detects every installed cockpit module and loads it into its own navigation.

The same module catalog also ships as a Cockpit plugin suite — 27 standalone plugins plus a Python bridge package that install under /usr/share/cockpit/sysdeck-*/ and appear in the Cockpit sidebar. This is now the optional deployment shape: for operators already running Cockpit, the suite drops in and rides the cockpit superuser/polkit channel for privilege. One catalog, two front ends, zero drift between them.

One catalog, two front ends

Shape	Use case	Lives at
Standalone web console (default)	Run the whole console in the browser — no Cockpit on the host at all	`web/` · one process on `:3000`
Cockpit plugin suite (optional)	Drop the same 27 domain modules into an existing Cockpit install	`/usr/share/cockpit/sysdeck-*/` · `https://<host>:9090`
Master tarball	Both shapes + vendored services in one bundle	`sysdeck-0.4.5-master.tar.bz2` (`make master`)

The parity rule runs both directions. Every domain module in the console has a counterpart plugin in plugins/sysdeck-*/, and the packages module, for instance, runs the same ten-manager step-down (pacman, emerge, lunar, sorcery, xbps, apk, zypper, dnf/yum, apt) with the same parsers and fixture tests on both sides. The console additionally detects every installed cockpit module on the host — distro modules like cockpit-machines and cockpit-podman, addons, anything with a menu entry in its manifest — and loads each into its own sidebar. Install a cockpit module on the box, and it shows up in the console; no cockpit login required to browse it.

Architecture

                       one module catalog
                              │
        ┌─────────────────────┴──────────────────────┐
        │                                            │
  web console (default)                    Cockpit plugin suite (optional)
  web/ · Next.js 16 · React 19 · Bun        plugins/ · 27 static plugins
  one process on :3000                      /usr/share/cockpit/sysdeck-*/
        │                                            │
  /api/bridge dispatcher                    cockpit.spawn { superuser: 'try' }
  31 TS bridge modules                     28 Python bridge helpers
  web/src/lib/sysdeck/bridge/              bridge/ → /usr/lib/sysdeck/bridge/
        │                                            │
        └─────────────────────┬──────────────────────┘
                              ▼
                 the host as it actually is
   /proc · /sys · systemctl · lsblk · ss · nft/iptables ·
   sensors -j · pacman/apt/dnf/zypper/emerge/xbps/apk… ·
   podman · virsh · kubectl · fwupd · fail2ban · XMRig · REST APIs

sysdeck/
├── web/                       # the standalone console (the default front end)
│   ├── src/lib/sysdeck/       # 31 bridge modules + registry + shell + session
│   ├── src/app/               # App Router: login gate + /api/{bridge,auth,fester,release}
│   ├── mini-services/fester/  # vendored DAG build orchestrator (own version, :3010)
│   └── scripts/               # pam-auth.py · manage-users.mjs · make-master-tarball.sh
├── plugins/                   # 27 Cockpit plugins (the optional front end)
├── shared/                    # bridge.js + sysdeck.css + sysdeck-web.css (cockpit side)
├── bridge/                    # 28 Python bridge helpers → /usr/lib/sysdeck/bridge/
├── klanker-gate/              # vendored LLM gateway (TykoDev, Apache-2.0 — not SysDeck code)
├── firewall/                  # 7 nftables templates + cilium policy
├── prometheus/                # prometheus + grafana provisioning configs
├── packaging/                 # PKGBUILD · RPM spec · debian/ · setup.py · polkit · metainfo
├── compat/                    # per-distro dependency matrix
├── standalone-plugins/        # sidebar registrations for external cockpit plugins
├── tests/                     # parser fixtures + build-time guards (make check)
├── scripts/                   # generate-plugins.py + fixture runner
├── docs/                      # INSTALL.md · SECURITY-HARDENING.md
└── Makefile                   # install / check / dist / master / web-dev

Bridge layers

Both front ends reach the system through a bridge layer — never directly from the browser.

Layer	Web console	Cockpit edition
Transport	`/api/bridge` route: module+command allowlist, 256 KB body cap, per-IP token bucket	`cockpit.spawn` with `{ superuser: 'try' }` — the cockpit way
Helpers	31 TypeScript modules, `web/src/lib/sysdeck/bridge/`	28 Python helpers, invoked by absolute path `python3 /usr/lib/sysdeck/bridge/<module>.py <sub>`
Resilience	TTL + single-flight caches shared across panels; fixed-argv spawns, scrubbed env, hard timeouts	Same disciplines, Python side
Permission	Mutations require an admin session (wheel/sudo/adm or uid 0); `SYSDECK_MUTATIONS=any` for single-operator consoles	polkit actions in `org.sysdeck.policy` (14 domains) + `org.sysdeck.modules3p.policy`

Every spawn uses the array form with an allowlisted command set — no eval, no Function constructor, no untrusted input reaching a shell. Credentials and privileged payloads ride stdin, never argv, so /proc/<pid>/cmdline cannot leak them to other local users.

Cross-cutting contracts

Cockpit manifest. Each plugin's manifest.json registers under the index menu key; cockpit serves the page at /cockpit/@localhost/sysdeck-<name>/index.html. The web console discovers the same modules from its own registry.
Module registry. scripts/generate-plugins.py is the declarative source for the plugin catalog; web/src/lib/sysdeck/registry.ts is the console's counterpart. Adding a module means appending an entry and dropping a plugin directory — no other wiring.
Zero-demo envelope. Every bridge response is { ok, data, source, note } where source is 'live' | 'hybrid' | 'unavailable' — the TypeScript union admits no 'demo' value, so the compiler rejects one at build time.

Module catalog

27 domain modules run in both front ends. The web console adds four panels of its own (Overview landing, the Run without Cockpit runbook, Hardware Alerts, and the Cockpit Modules hub) for 31 total.

System

Panel	What it reads / does

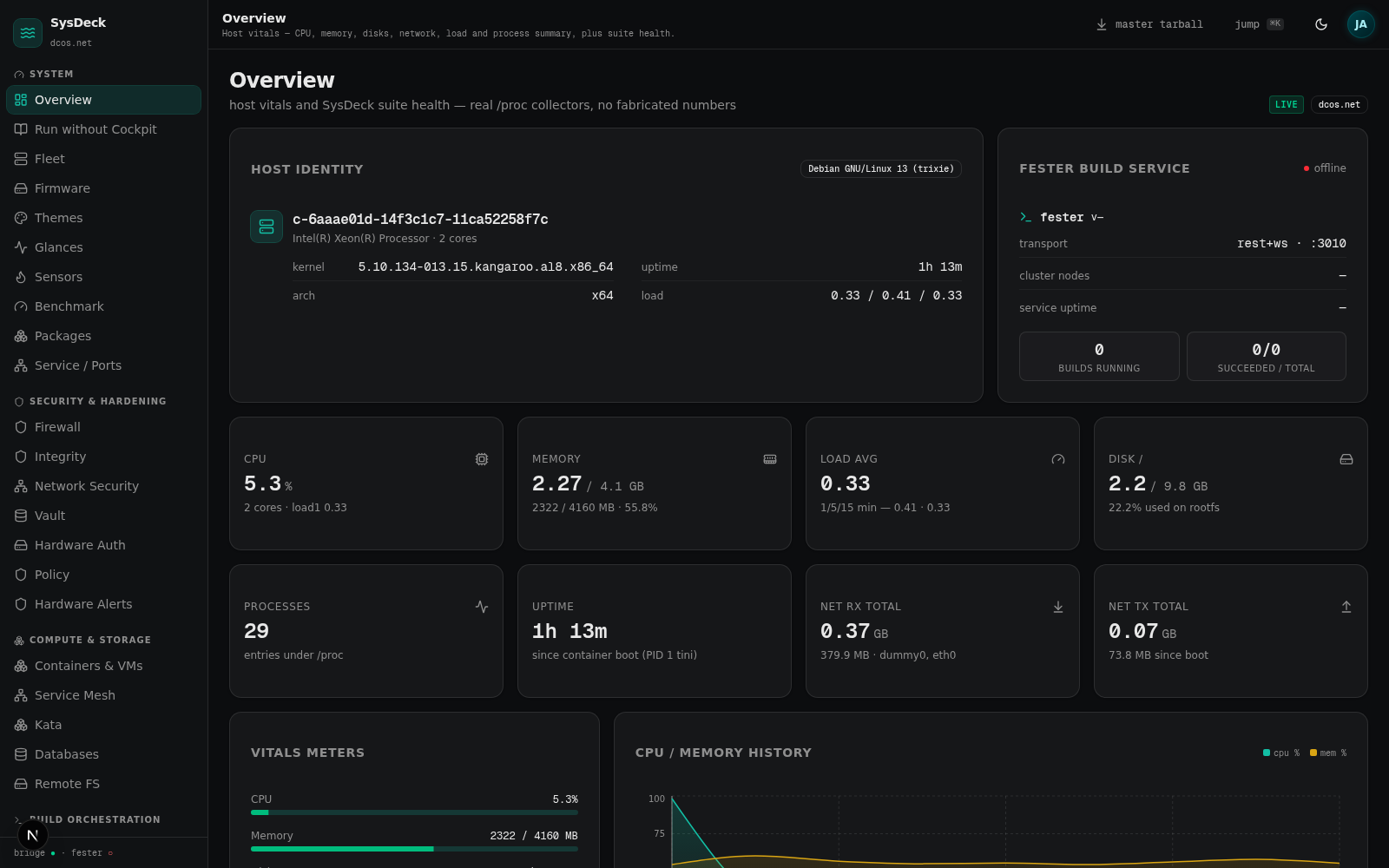

Overview (console)	Host vitals — CPU, memory, disks, network, load, process summary, suite health
Run without Cockpit (console)	The standalone deployment runbook, in-console, with copy buttons
Fleet	Node registry and live host metrics
Glances	Live cross-domain monitor; embeds the Glances web UI + snapshot cards
Sensors	`sensors -j` (lm-sensors) with raw `/sys/class/hwmon` / thermal-zone fallback
Benchmark	CPU / memory / disk micro-benchmarks with score history
Packages	Ten managers: pacman · emerge · lunar · sorcery · xbps · apk · zypper · dnf/yum · apt
Firmware	fwupd inventory, DMI identity, TPM PCR boot chain
Themes	Live-switch the whole suite between console themes
Service / Ports	Every listening socket, cross-referenced against a services registry; atomic port edits + restart

Security & Hardening

Panel	What it reads / does
Firewall	Live nft/iptables ruleset reads; seven deployable templates (public-webserver, vps-webserver, ai-llm, remote-admin, no-services, cilium, sysdeck-fw) with privilege-gated applies
Integrity	Tripwire-style baseline / drift detection + lynis hardening index
Network Security	Kernel-source connection states, listening surfaces, real ban enforcement (nftables blacklist set or iptables DROP) merged with the live fail2ban list, port sweeps
Vault	LUKS volumes from `lsblk`; keyfile / TPM-sealed secret entries
Hardware Auth	PKCS#11 smartcard readers, certificates, hardware tokens
Policy	LSM stack (AppArmor/Smack/TOMOYO/Yama/LoadPin/Lockdown/BPF-LSM/Landlock), ACLs, cgroups v2, VLANs, eBPF, namespaces, file capabilities
Hardware Alerts (console)	Foreign-device detection — USB storage, Thunderbolt DMA, rogue bluetooth, new PCI, firmware tamper

Compute & Storage

Panel	What it reads / does
Containers & VMs	Incus / LXC / Podman / libvirt / Firecracker inventory + lifecycle actions
Service Mesh	Kubernetes services, deployments, pods across namespaces
Kata	Kata Containers confidential-compute sandboxes
Remote FS	Ceph / GlusterFS / MooseFS / BeeGFS / OrangeFS registries, mount/unmount/heal
Databases	32+ engines across SQL, NoSQL, vector, time-series, graph, embedded, AI — start/stop/backup, read-only SQL queries

Build Orchestration

Panel	What it reads / does
Fester	Distributed DAG builds via the vendored :3010 service — live event stream, replay, autopsy, causal graph, step debugger
Image Builder	mkosi / vmdb2 / archiso / live-build profile management, package lists, build runs, artifacts
Mining	Rig fleet, per-GPU hashrate and thermal watch — live XMRig API + nvidia-smi

Media

Panel	What it reads / does
Jellyfin	Media server library and active sessions; service control + admin UI
Photos	PhotoPrism / Piwigo / Lychee / Nextcloud-Memories / LibrePhotos libraries

Integrations

Panel	What it reads / does
Monitoring	Prometheus + Grafana probes, with a native ring-buffer metrics fallback when absent
3rd-Party Modules	In-suite installer for third-party Cockpit modules (45Drives Navigator/File-Sharing/ZFS-Manager, cockpit-pacman, cockpit-identities, …) with inline license disclosure
AI Gateway	klanker-gate ("Frosty Deno", by TykoDev — not SysDeck code) client: providers, virtual keys, request logs, spend; live local-backend probes (ollama, llama.cpp, KoboldCpp, LM Studio, SGLang, vLLM)
Cockpit Modules (console)	Every cockpit module detected on the host — manifest identity, shipped files, live backend presence probes, jump to the native panel covering the domain

Each domain module fails closed when its backend tool is absent — the panel shows an install hint instead of crashing.

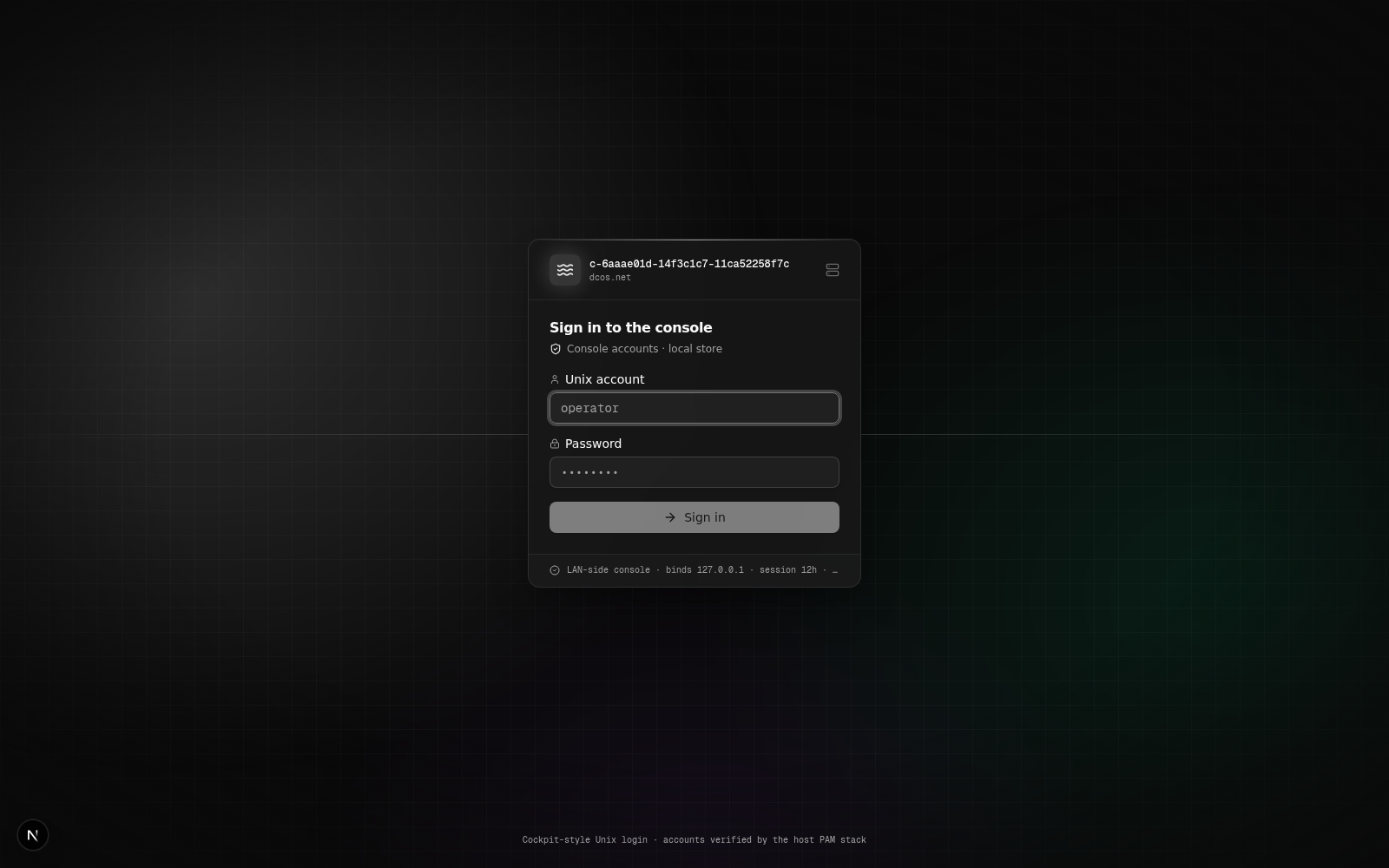

The auth model

The console owns no account system. web/scripts/pam-auth.py is a stdlib-only ctypes client of libpam that runs pam_start → pam_authenticate → pam_acct_mgmt under the sysdeck service when /etc/pam.d/sysdeck exists, else the stock login stack. Credentials travel over stdin as one JSON document — never argv. Ship your own /etc/pam.d/sysdeck to tailor the stack (MFA modules included, if you want them).

Three auth modes cover the deployment shapes: SYSDECK_AUTH_MODE=pam (default, cockpit-faithful — run the service as root so any Unix account can sign in), pam+local (PAM first, locally-stored scrypt accounts as the fallback for unprivileged installs), and local (console accounts only, managed with bun scripts/manage-users.mjs list|add|passwd|disable|enable|remove).

Sessions are HttpOnly, SameSite=Lax cookies (sd_session) holding an HMAC-SHA256-signed token bound to the username — v2.<exp>.<userB64url>.<hmac>, 12 h expiry, per-install key persisted in SQLite so sessions survive restarts and the Fester service verifies the identical token on its own REST + WebSocket surface. Login failures are rate-limited per-IP and per-username (5/min each); wrong-user and wrong-password return the same generic answer, so nothing enumerates accounts.

Real host state — the zero-demo contract

Every module ships a production implementation only. The bridge envelope's DataSource type is three strings wide — 'live' | 'hybrid' | 'unavailable' — and the compiler rejects any reintroduction of a 'demo' value. A host with no sensors gets an honest empty inventory, never a made-up chip set; a host with no XMRig daemon says so and shows install guidance. Bans are enforced through a real atomic nftables batch (table inet sysdeck, 30-day timeouts) or an iptables INPUT DROP rule, and the live fail2ban ban list is merged when fail2ban runs. LUKS header backups are hashed from the actual image bytes, verifiable with sha256sum on the command line. The firewall panel renders the host's actual kernel ruleset (nft -j list ruleset / iptables-save), refreshed live.

Live rows where the backend exists, honest empties where it does not — both from the same session:

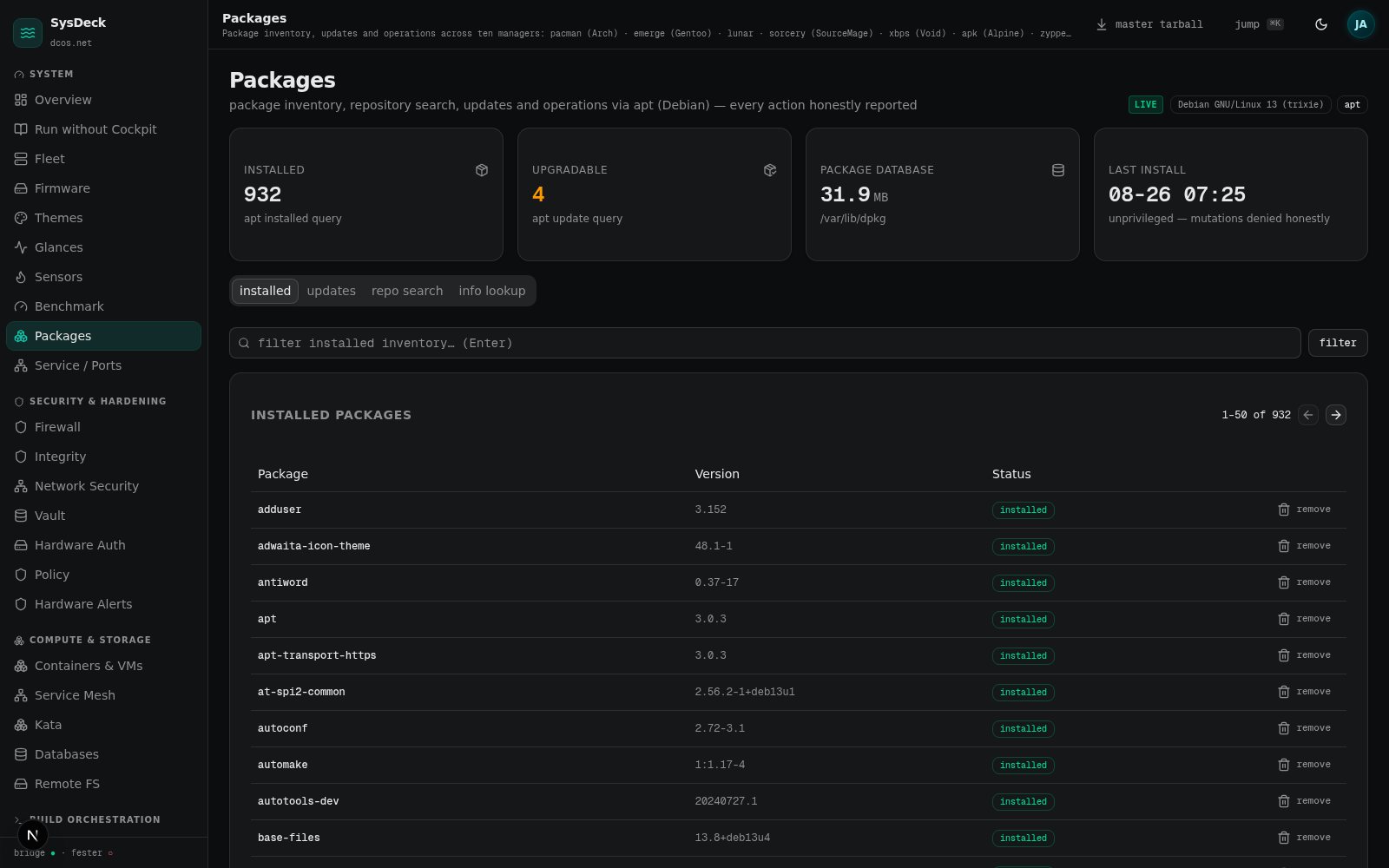

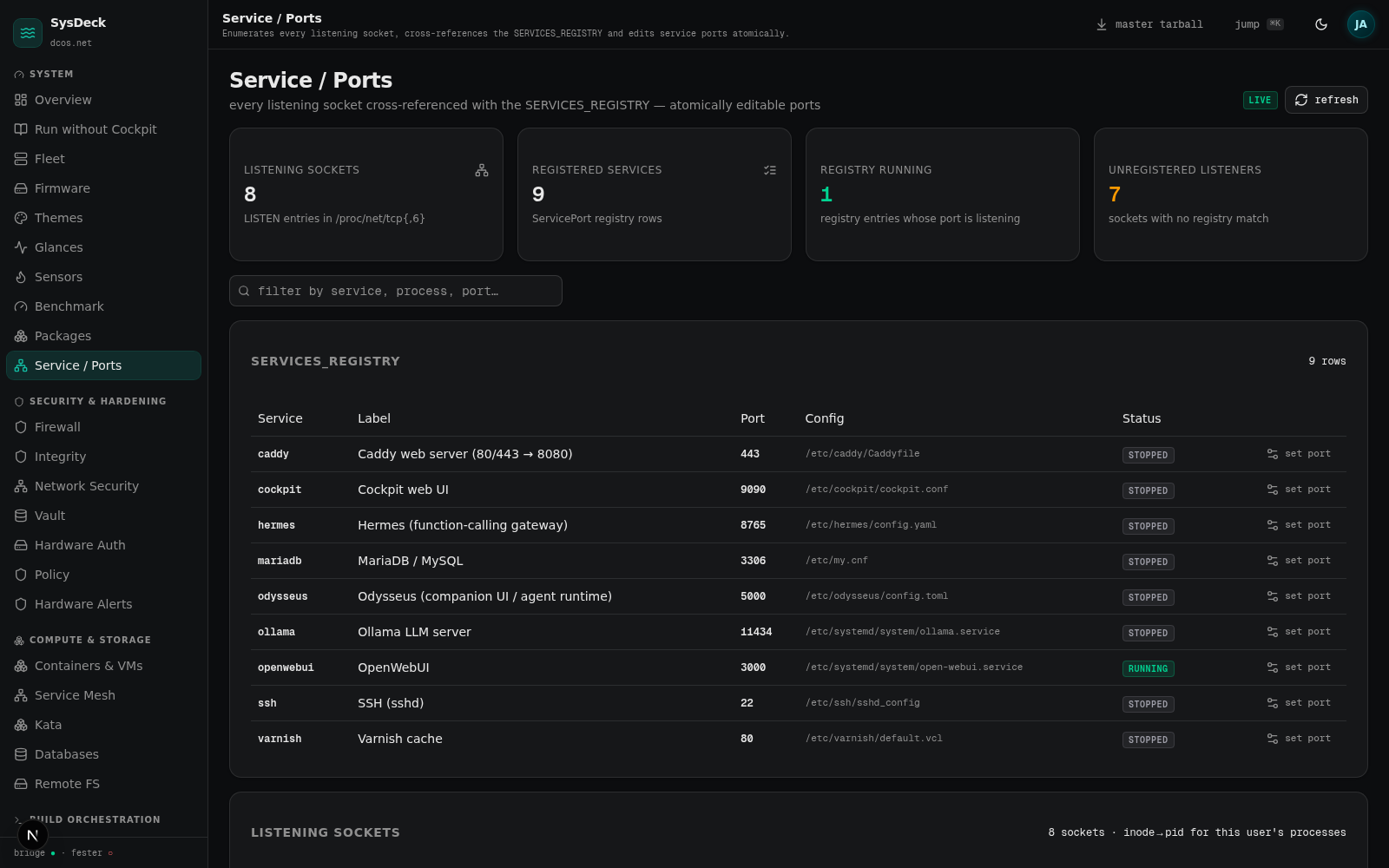

Packages — 932 real apt rows	Service / Ports — every listening socket

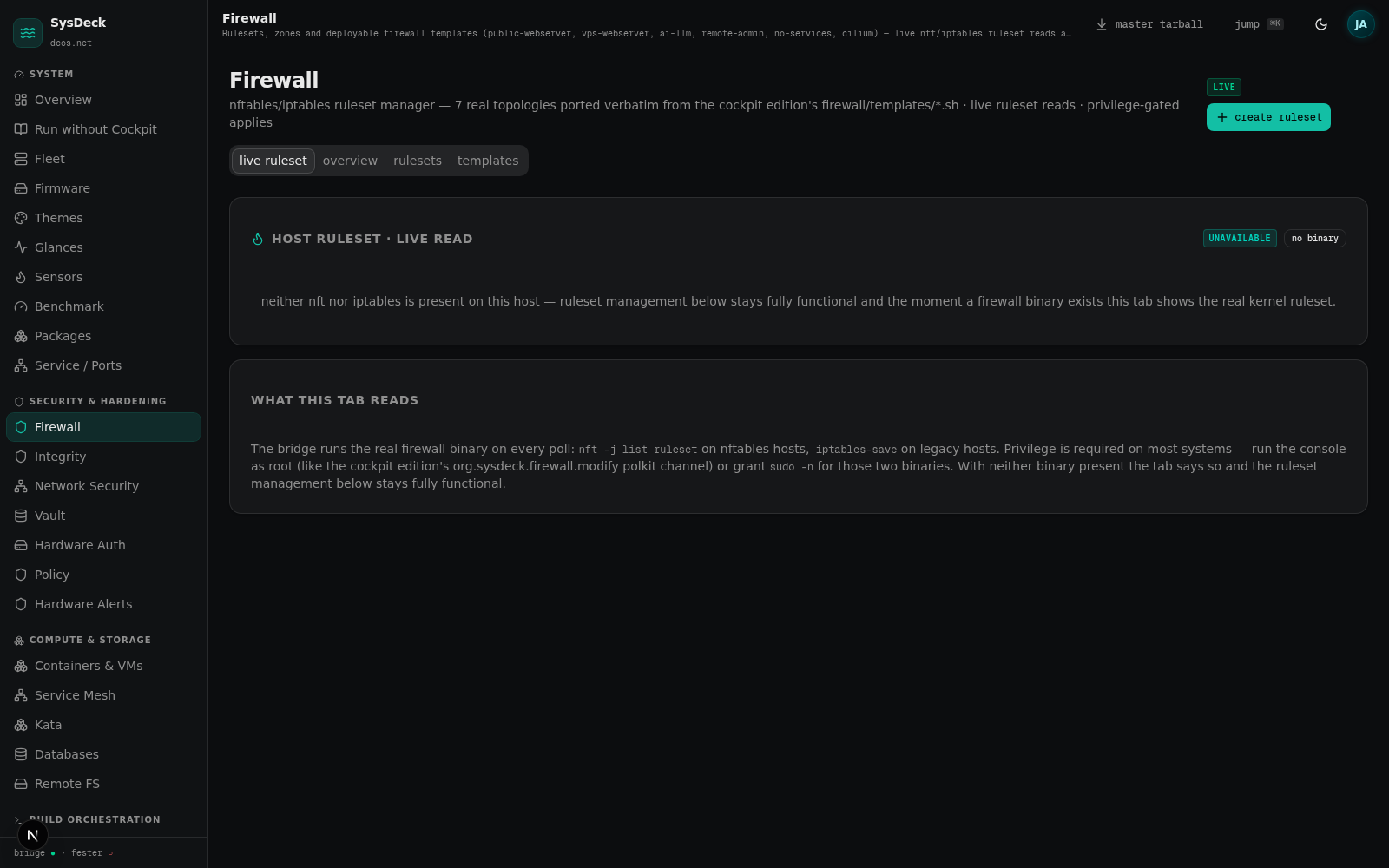

Firewall — the honest empty (no nft on this host)

Quick start

Standalone console (default — no Cockpit required)

tar xjf sysdeck-0.4.5-master.tar.bz2
cd sysdeck-0.4.4-master
make web-dev        # bun install + db:push + fester (:3010) + next dev (:3000)

Open http://localhost:3000 and sign in with a Unix account. Prerequisites: Bun ≥ 1.1 (Node-only hosts work too), ~200 MB disk, ~512 MB RAM. Not required: Cockpit, systemd, Docker, root. The production path — standalone build, the two systemd units, the .env reference, reverse proxy with the ?XTransformPort= websocket gateway, troubleshooting — is web/README.md, shipped in-console as the "Run without Cockpit" panel.

Cockpit plugin suite (optional)

cd sysdeck-0.4.4-master
sudo make install
sudo systemctl restart cockpit.socket
# open https://<host>:9090 → 27 "SysDeck <Name>" entries appear in the sidebar

Prerequisites: cockpit-bridge ≥ 239, python3 ≥ 3.9, polkit. The five-minute version of both paths is QUICKSTART.md; the full install matrix (Make, RPM, pip, staged overlay) is docs/INSTALL.md.

Configuration

Key environment variables (web console — full reference in web/README.md §5):

Variable	Default	Meaning
`SYSDECK_AUTH_MODE`	`pam`	`pam` (host PAM only) · `pam+local` (PAM first, scrypt fallback) · `local` (console accounts)
`SYSDECK_PAM_SERVICE`	`sysdeck`	PAM service name; falls back to the `login` stack when `/etc/pam.d/sysdeck` is absent
`SYSDECK_MUTATIONS`	`admin`	Mutating bridge commands require an admin session; `any` restores the single-operator posture
`SYSDECK_SESSION_SECURE`	off	Add the `Secure` cookie flag when fronted by TLS
`SYSDECK_TRUST_PROXY`	off	`X-Forwarded-For` defines rate-limit identity only behind an opted-in proxy
`SYSDECK_COCKPIT_SCAN`	—	Extra scan roots (colon-separated) for cockpit-module detection
`KLANKER_URL` / `KLANKER_ADMIN_TOKEN`	`http://127.0.0.1:8080`	Point the AI Gateway panel at a running klanker-gate
`DATABASE_URL`	`file:../db/custom.db`	SQLite store for sessions, audit log, module state

Security model

The console is a LAN-side tool — loopback binding stays the outer boundary; front it with TLS and set SYSDECK_SESSION_SECURE=1 for anything beyond. Privileged writes ride stdin and verify themselves (polkit rules byte-for-byte after write; nft -f - / iptables-restore piped rulesets; mktemp staging everywhere /tmp was predictable). Dry-runs preview exactly what apply executes; unbans and template applies report the firewall's real exit code. The design lessons — drawn from Webmin, Cockpit, and admin-panel CVE history — are recorded in docs/SECURITY-HARDENING.md, mapped finding-to-fix.

Development

make check         # 7 build-time guards + 267 parser unit tests
make dist          # cockpit tarball (runs check first)
make distcheck     # extract the tarball into a clean dir, run check inside
make master        # master tarball: cockpit + web + fester + klanker-gate
make web-dev       # run the web console locally

The guards cross-check what drift would otherwise break: every bridgeCmd() call in shared/bridge.js against the COMMANDS dict in each Python helper, every plugin manifest against the cockpit-podman reference pattern, version sync across the release surfaces, the forbidden import cockpit from and python3 -m sysdeck.bridge patterns, and Makefile recipe indentation. The web side holds the same bar: bun run lint and tsc --noEmit clean.

Coding standards

The codebase follows four reference standards, adapted to TypeScript/JavaScript/Python:

PEP 868 (spirit). 4-space indentation in Python; 2-space in JS; trailing commas in multi-line literals. Type annotations on every public Python function.
POSIX. Each function does one thing. Compose with pipes (event bus), not with hidden side effects. No function returns more than one type.
SEI CERT. No eval, no Function constructor, no untrusted input reaching spawn without an allowlist. All spawns use the array form.
MISRA (spirit). Limited cyclomatic complexity per function. Single exit point where practical. No heap allocation in render hot paths.

Refactor discipline

When modifying code, prefer in this order:

Lookup table — if the construct is a status-to-X mapping, use a Record<string, X> (JS) or dict / list-of-tuples (Python). The policy module uses LSM_PROBES, NON_LSM_CONCERNS, SMACK_FILE_MAP, TOMOYO_FILES, and YAMA_SCOPE_NAMES for exactly this reason — adding a new LSM is one line in the table, not a new code path.
Functional iterator — map / filter / reduce / flatMap over for or while.
Early return — flatten nested if with guard clauses.
Switch — only when the case set is closed and a lookup table would be less readable.

When a fork of choices appears, apply step-down logic: pick the option that composes best with the rest of the system (Unix philosophy), document the decision in a comment, and move on.

Comments

Code comments state decisions, not history. Use them to record why a non-obvious choice was made. Every comment should sound like a decisive decision.

Documentation map

Document	What it holds
QUICKSTART.md	The five-minute paths: standalone console first, cockpit plugin second
docs/INSTALL.md	The install matrix: standalone, Make, RPM, pip, staged overlay
web/README.md	The complete standalone runbook (also shipped in-console as the Run without Cockpit panel)
BLOG.md	The engineering essay — auth model, one catalog two front ends, zero-demo contract
docs/SECURITY-HARDENING.md	CVE-to-fix mapping from Webmin/Cockpit/admin-panel history
QA.md	Per-release QA records
worklog.md	Per-task development log
THIRD_PARTY.md	Third-party attributions (incl. the vendored klanker-gate)

License

MIT — see LICENSE. Third-party attributions: THIRD_PARTY.md. The vendored klanker-gate gateway is by TykoDev (Apache-2.0) — not SysDeck code; see klanker-gate/ATTRIBUTION.md.

Author: Jeremy Anderson (info@dcos.net, https://dcos.net). Release history: QA.md and worklog.md hold the per-version records.
